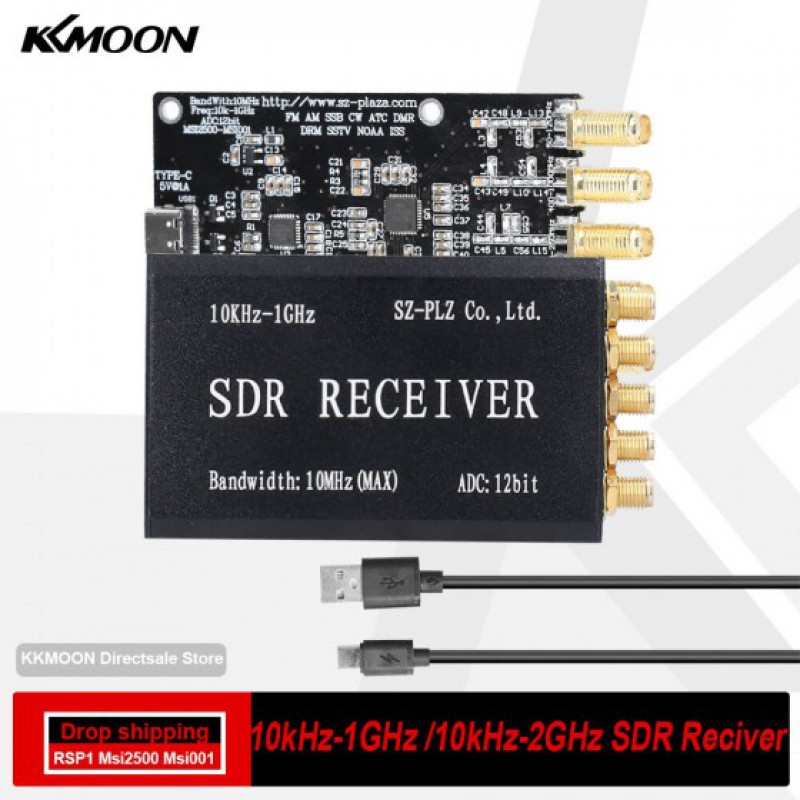

RSP1 Msi2500 Msi001 SDR 接收器 10kHz-1GHz /10kHz-2GHz 业余无线电接收模块电路 DIY 电子配件

10kHz-1GHz and shell

This receiver adopts msi2500 msi001 scheme, simplified RSP1 circuit, the interface is USB Type-C interface. Equipped with 5 antenna interfaces correspond to different frequency band. Effective frequency ranges from 10KHz to 1GHz, 12bit ADC resolution, full 10M real-time visual bandwidth (real-time monitoring of 10M wide signal ranges, such as 430-440MHz).

Features:
Adopts msi2500 msi001 scheme, simplified RSP1 circuit, the interface is USB Type-C interface.
Equipped with 5 antenna interfaces correspond to different frequency band.
Effective frequency ranges from 10KHz to 1GHz, 12bit ADC resolution, full 10M real-time visual bandwidth (real-time monitoring of 10M wide signal ranges, such as 430-440MHz).

Wide applications, suitable for frequency modulation, AM amplitude modulation, SSB unilateral Band, broadband and narrowband analogs, DRM digital broadcasting, and etc..
Compatible with four platforms: for Wins, Linux, MacOS, and Android.
It perfectly supports mainstream software such as for HDSDR, software defined radio consol, and GNURadio. (Devices for Android need to support OTG).

Specifications:
Name: Receiver
Material: printed circuit board
Item size: 92 * 50 * 9mm / 3.62 * 1.97 * 0.35in
Item weight: 45g / 1.59ounce
Package size: 166 * 143 * 20mm / 6.54 * 5.63 * 0.79in
Package weight: 57g / 2.01ounce

Packing List:(10kHz-1GHz and shell)
1 * Receiver
1 * Cable

Packing List:(10kHz-1GHz)
1 * Receiver
1 * Cable

10KHz-2GHz

This radios receiver adopts msi2500 and msi001 scheme, simplified circuit, the interface is USB Type-C interface. Equipped with 5 antenna interfaces correspond to different frequency band. Effective frequency ranges from 10KHz to 2GHz, 12bit ADC resolution, full 10MHz real-time visual bandwidth (processing 10MHz wide signal at the same time).

Features:
Adopts msi2500 msi001 scheme, simplified circuit, the interface is USB Type-C interface.
Effective frequency ranges from 10KHz to 2GHz, 12bit ADC resolution, full 10MHz real-time visual bandwidth (processing 10MHz wide signal at the same time).
Wide applications, suitable for frequency modulation, AM amplitude modulation, NFM(narrowband frequency modulation is used to simulate walkie-talkies), unilateral Band, broadband and narrowband analogs and digital intercoms, DRM digital broadcasting, and etc..
Compatible with four platforms: for Wins, Linux, MACOS, and Android.
It perfectly supports mainstream software such as for SDRuno, HDSDR, software defined radio consol, GNURadios.

Specifications:
Name: SDR Receiver
Material: printed circuit board
Item size: 105 * 35 * 8mm / 4.13 * 1.38 * 0.31in
Item weight: 37g / 1.31ounce
Package size: 125 * 75 * 35mm / 4.92 * 2.95 * 1.38in
Package weight: 57g / 2.01ounce

Packing List:
1 * SDR Receiver
1 * Cable
